Xijia 1500W(Peak Power 3000W) 48v to 120v Pure sine Wave 60HZ Solar Inverter for Home Use car (DC48V (Range 40V-60V) 1500W)

Features

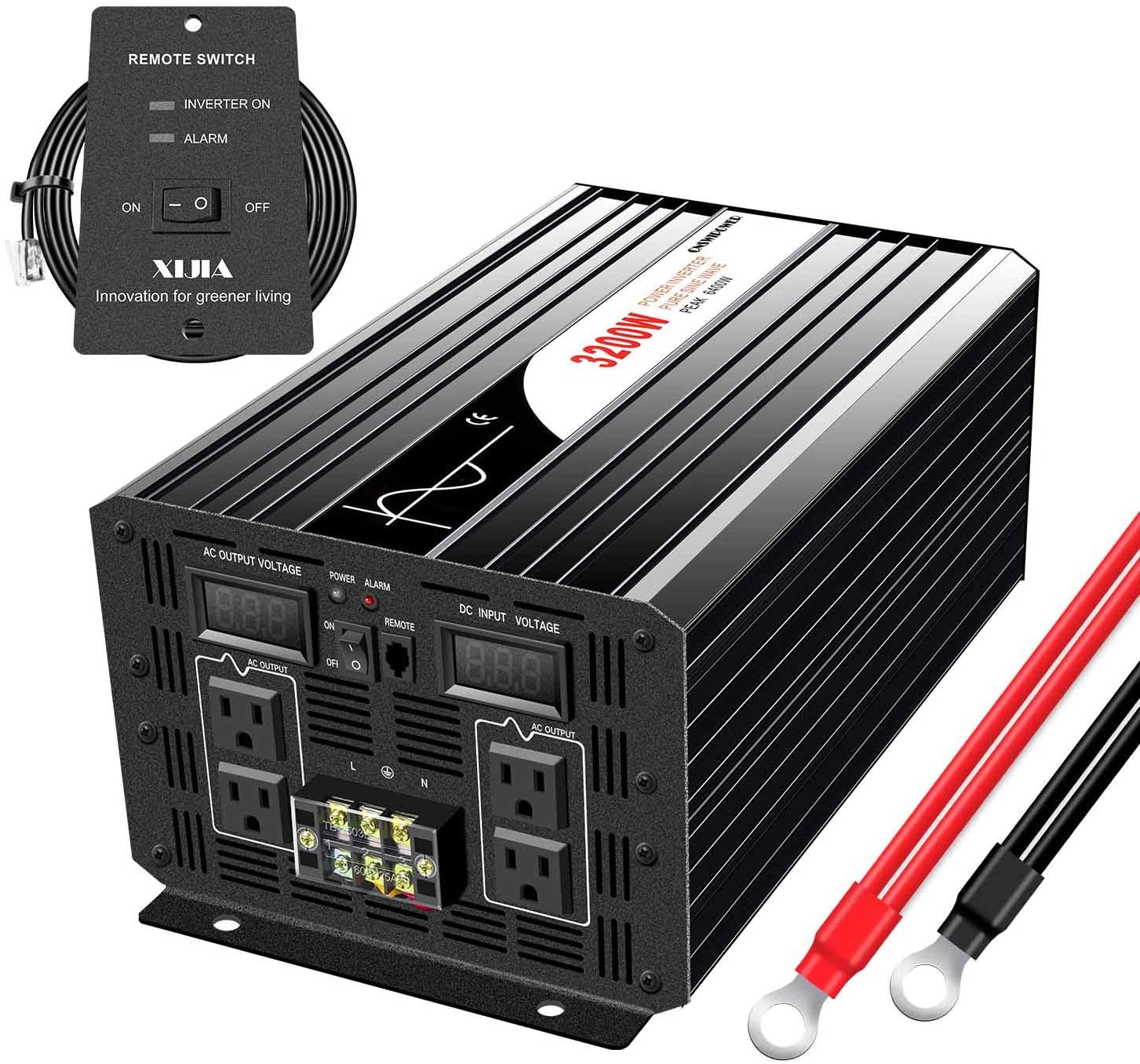

• Remote control

The inverter can be remotely controlled, suitable for various RVs and solar power generation systems.

• Soft start

Achieve smooth starting and reduce starting current.

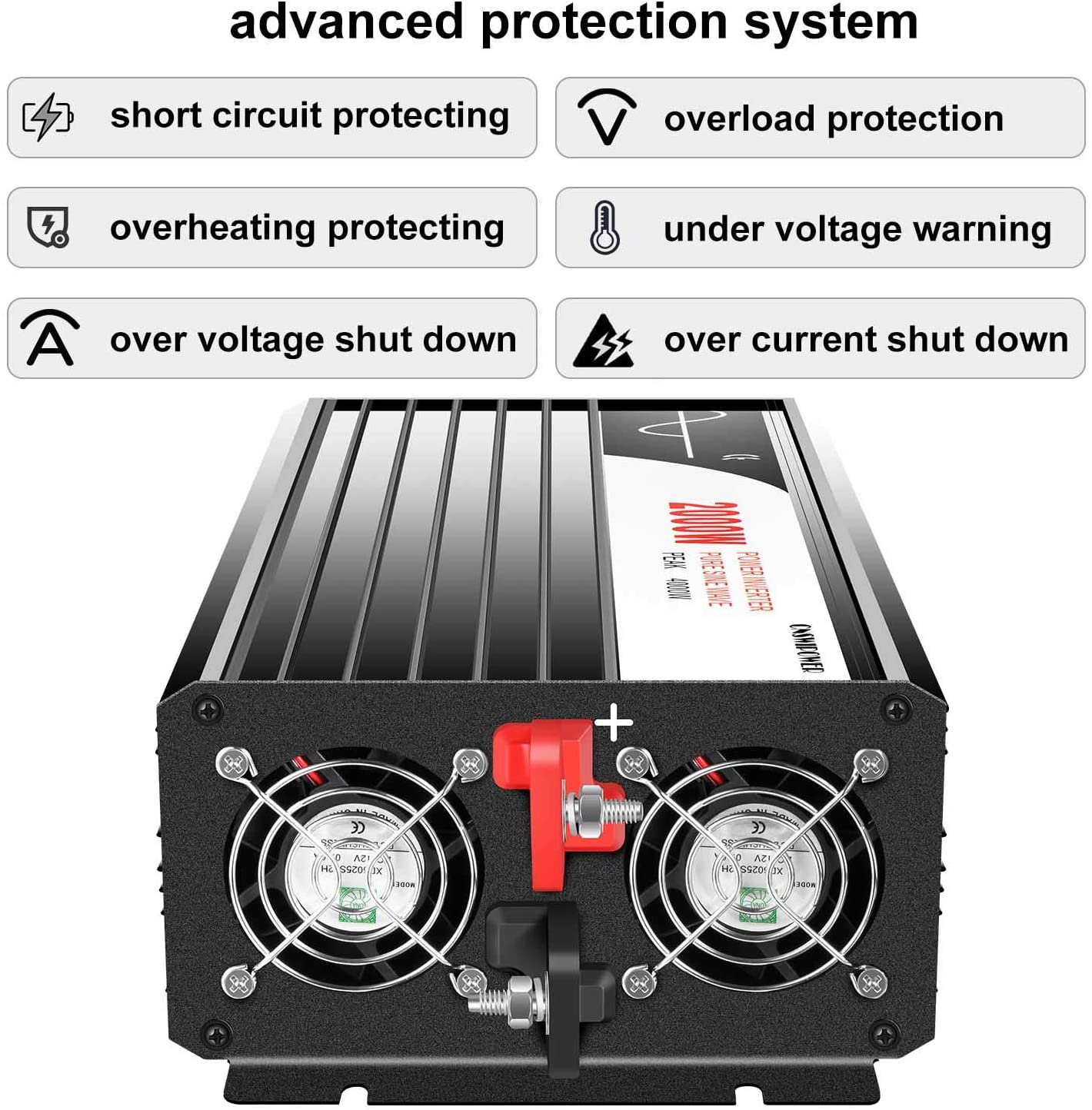

• Multiple protection systems

Short circuit protection, over voltage protection, over temperature protection, low voltage warning, over voltage shutdown, high current shutdown.

• Terminal

Adopt high-strength plastic shell, highlight the design of split protection, the terminal is not easy to be damaged, and can prevent short circuit.

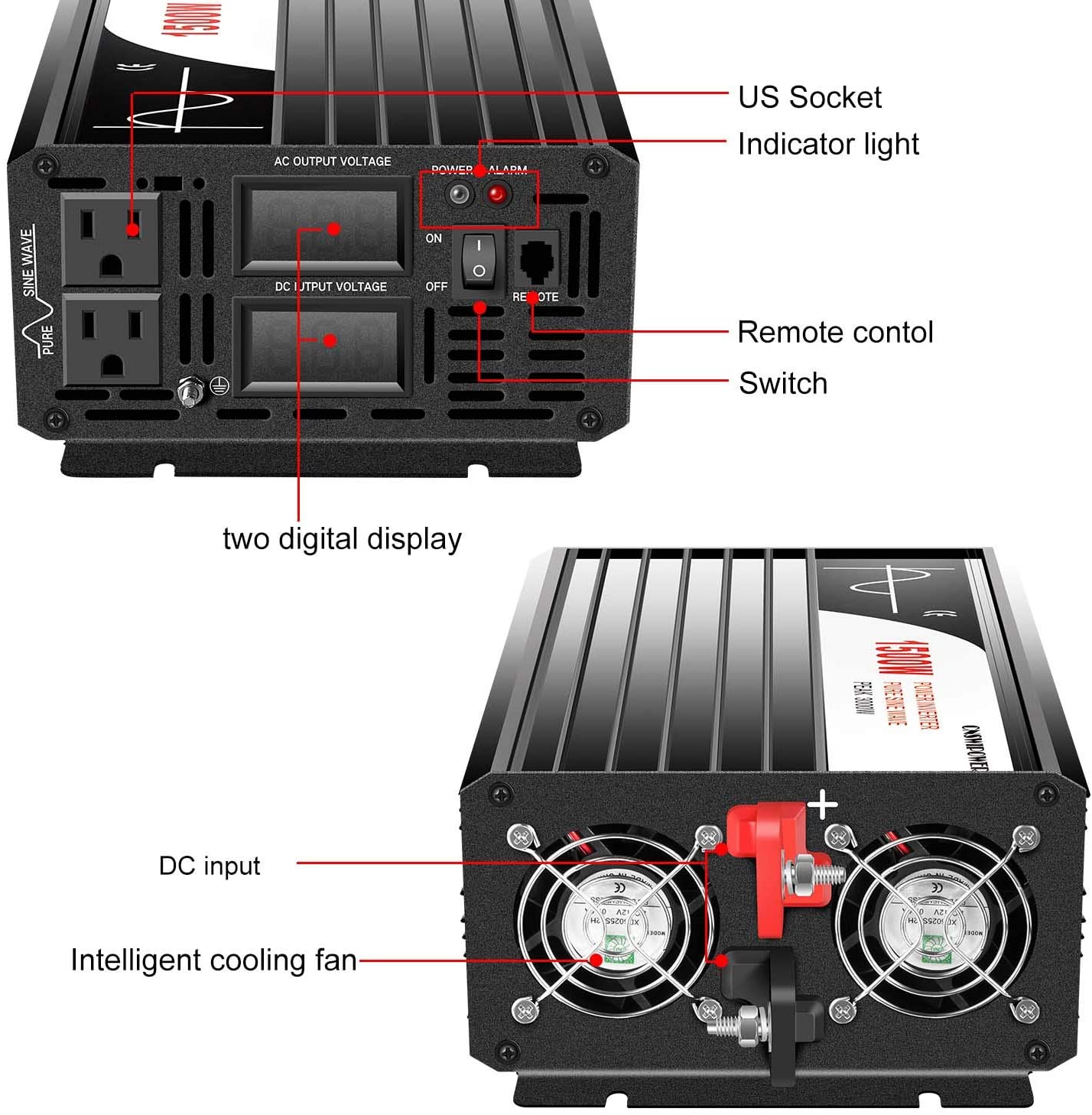

• Double digital display meter

Input voltage and output voltage, two digital display meter design, let you use more at ease.

• High quality PCB circuit board design

The pure sine wave inverter has 100% sufficient power. The performance is strong, the product is free of false marks, and it is trustworthy.

• High quality PCB circuit board design

Adopt high-strength, high-toughness double-sided board, and the welding point is firm. The components are arranged neatly, with cable ties and cable strap connections, and the capacitor components are fixed by glue. The heat dissipation duct is close to the core heating elements such as MOS tubes, transformers, inductors, etc., which makes the heat dissipation efficiency more effective and can effectively extend the service life.

• Strict processing technology

Each inverter has passed more than a dozen processing processes such as plug-in, dip welding, corner cutting, automatic welding, repair welding, inspection, plate washing, motor inspection, assembly, high-voltage test, aging test, and sampling inspection.

1:Continuous Power: 1500W Surge Power: 3000W Frequency: 60HZ Wave Form: Pure Sine Wave AC Regulation:THD<3%(Linear Load) Output Efficiency: 92% Input Voltage: DC 12V 24V 48V AC Voltage:120V AC No Load Current Draw:2a 1a 0.5a 2:DC Voltage Range:10-15V 20-30V 40-60V

Low Voltage Shut Down:10V/20V /30V Over Voltage Shut Down:15V/30V/60V Voltage Recovery:12.5V/25V/50V Over Voltage Recovery:15V/30V/60V

3:Protection:Low Voltage/Over Voltage LED Alarm and Automatic Recovery. Overload: LED Alarm and Automatic Recovery Over Temperature: LED Alarm and Automatic Recovery. Short Circuit: LED Alarm and Automatic Recovery. 4:Working Temperature: -10°- +50° Storage Temperature-30°- +70°

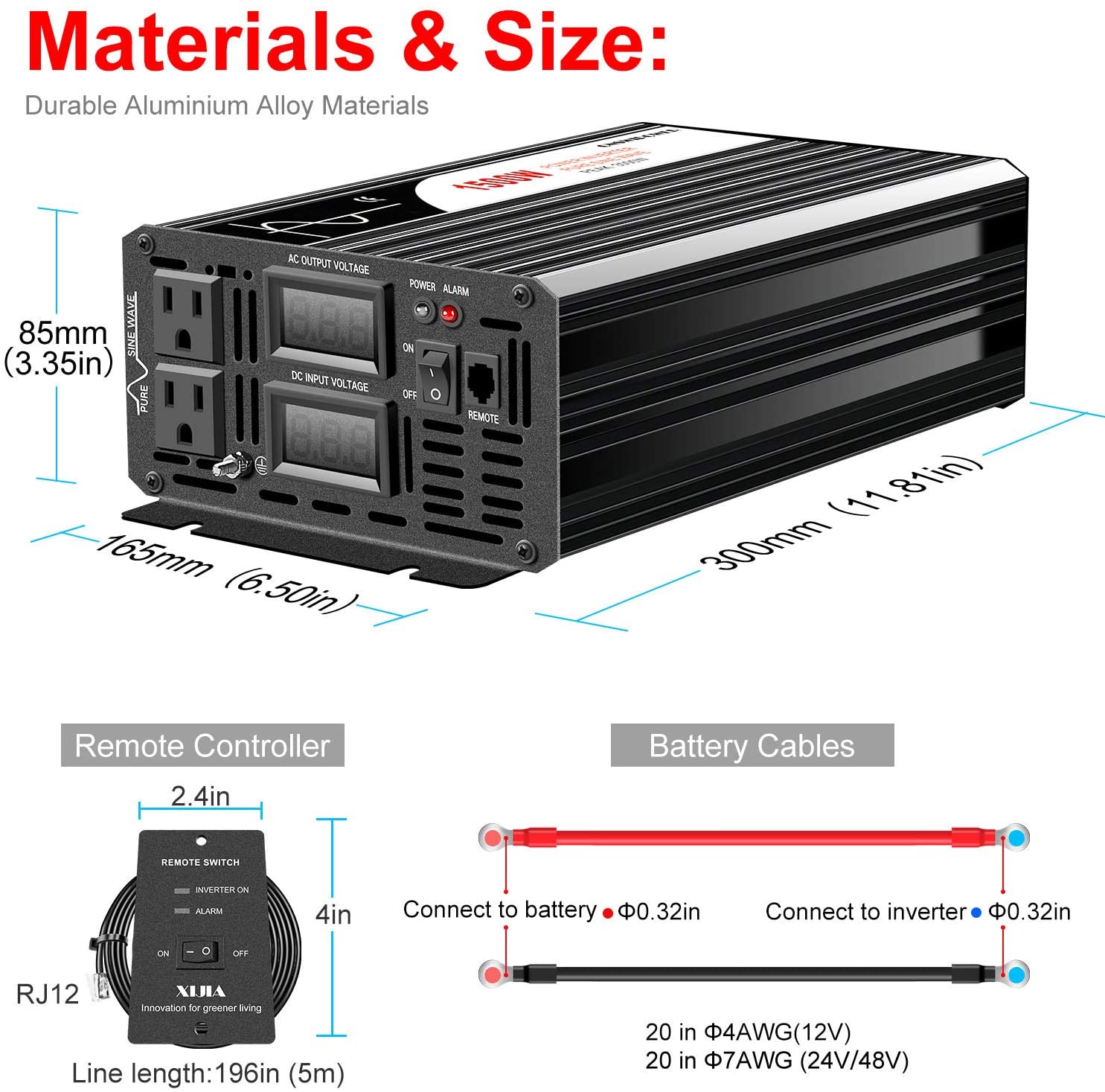

5:Production Size: 325*165*85(mm) Package Size: 360*240*150(mm) 6:N.W/G.W: 3.3/ 3.5(kg) 7:Start: soft-start 8:The PCB thickness is 2.00mm, which allows the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output.9:1500W continuous 3000W peak true pure sine wave solar power inverter,Sufficient use for normal power supply for home, for refrigerator,air conditoners, TV, Computer,lights, fans microwave.The PCB thickness is 2.00mm, allow the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output.All around protections, under voltage alarm cut down protection, over voltage protection, reverse fuse protection, high volt cut off protection, Over current, Over load shut off protection, Short circuit fuses protection, Over thermal production.10:Our company is the Shanghai xijia technology Co., Ltd.Our company focus on produces inverters last several years,whose wave form is pure sine wave.The advantage of pure sine wave is that it outputs high-quality alternating current. Which can drive any electrical appliances, such as refrigerators, air conditioners, induction cookers, water pumps and other inductive load electrical appliances can operate normally, and it has no interference or loss to the power supply, low standby power consumption, and also protects the electrical appliances,In addition, our inverter also has 7 major protections: 1 low voltage protection, high voltage protection, overload protection, high current protection, low current protection, reverse connection protection, automatic alarm, if the inverter is connected to overload the electrical appliances will stop working and there will be an alarm sound, which not only protects the electrical appliances, but also protects the buyers.
