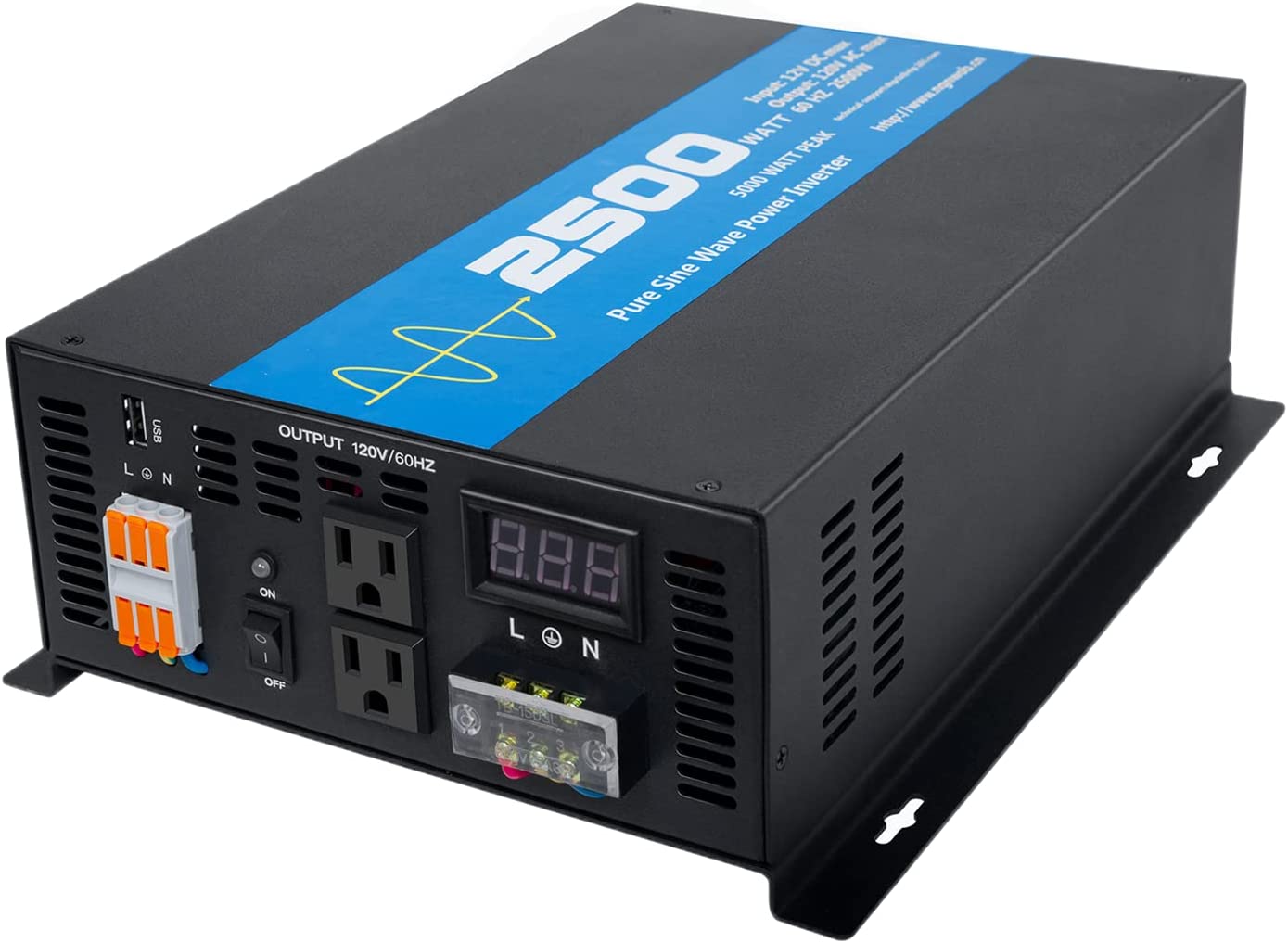

TVNIKD 2500Watt Pure Sine Wave Inverter Solar Inverter DC 12V to AC 120V Power Converter with Various outlets for Home RV Truck Off-Grid Solar
Product Description
TVNIKD is a trustworthy brand of inverters . With more than 10 years experience in this field, We devote ourselves to providing customers with inverters of superior quality .All products under TVNIKD brand are guaranteed for 18 months.
- 100% True pure sine wave
- various outlets(USB/2AC sockets/2AC terminal blocks)
- Intelligent LCD display
- Durable Aluminum case
- Superior internal core
- 3 powerful smart fans

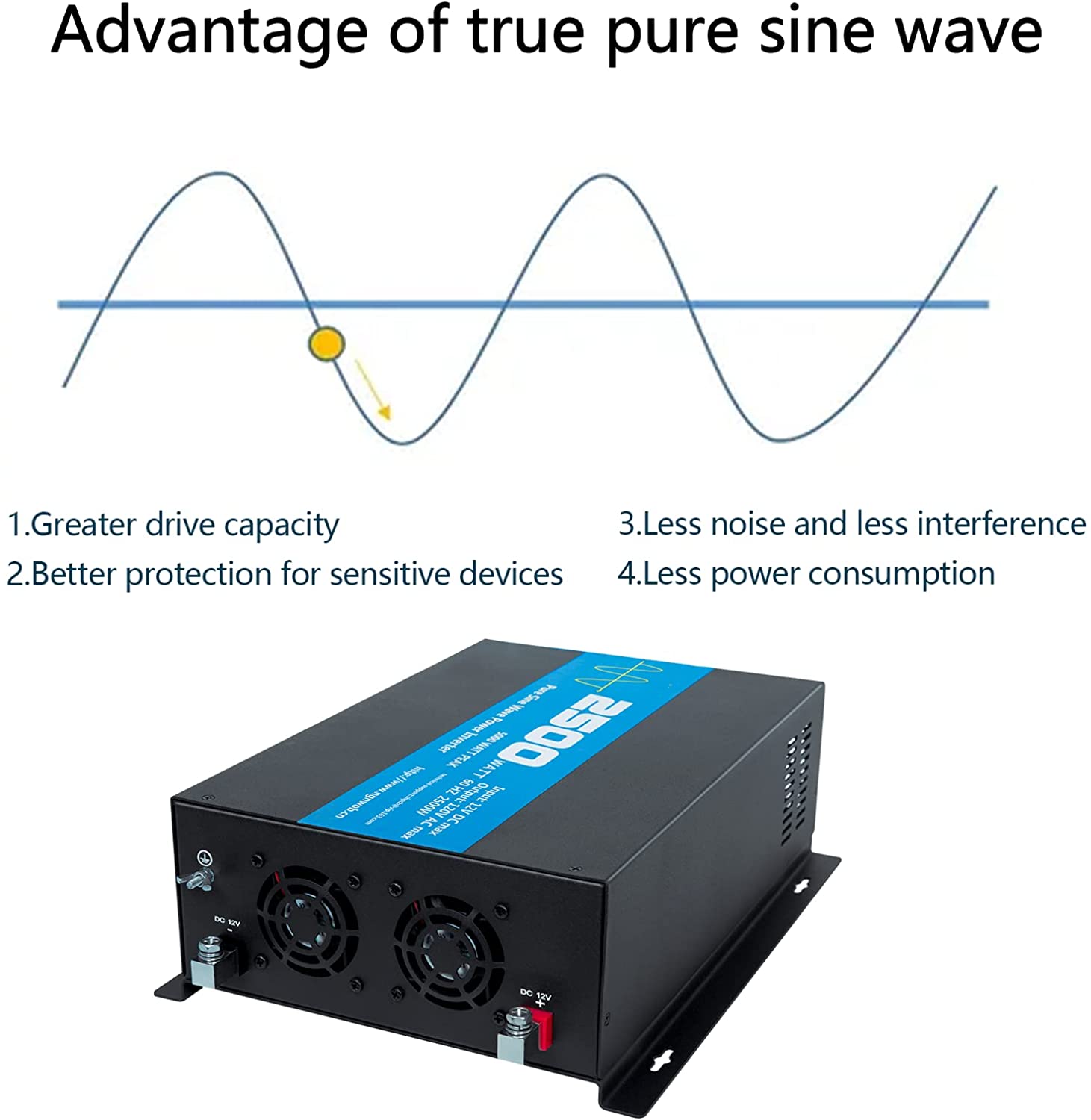

This inverter delivers 2500 watt continuous true pure sine wave as well as grid power . which has less noise less interference , greater drive capacity and better protection for sensitive and sophisticated electrical devices.With its quiet and less interference pure sine wave, there are no strange buzzing sounds when your electronics are turned on and allow them to run smoother, cooler, and quieter.It can extend longer life cycle of your devices due to it's high qualified pure sine wave .
- Less noise less inverference and more protection for your sensitive electrical devices
- Multiple outlets ,More convenient when connecting loads
- 30% reduction of power consumption
- Great heat dissipation performance
- true pure sine wave as stable as grid- power

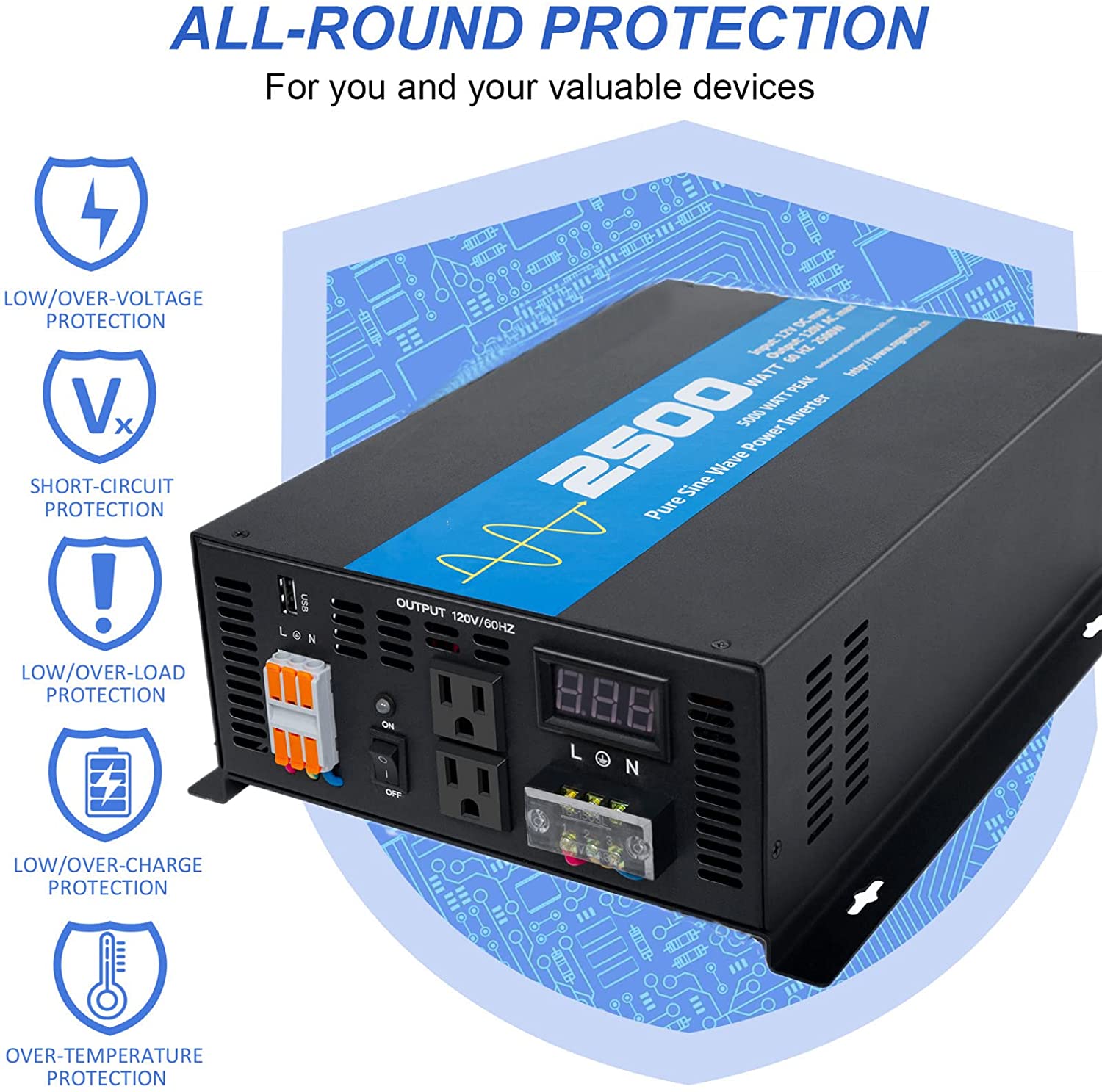

- 6 round protection against overheating, under and over voltage charging, short circuiting, overloads.
TVNIKD 2500 W pure sine wave inverter can deliver continuous 2500 Watts / instantaneous 5000 Watts power; its purified sine wave form is more reliable for your sensitive and sophisticated electrical devices with less interference. With 2500 W heavy-duty power, you don’t have to worry about your devices can’t be drove.it can power up wide range of devices within 2500 W. It can be widely used on off-grid solar panels, small power tools, heaters, boilers, coffee machines, fans, refrigerators, etc. Ideal used in your truck, boat, emergency, or any other power outage.
[Tips and precaution]:
1. This Power Inverter applied for DC 12 V，not for 24 V. Only connect it to 12 V battery.
2. The cooling fan is quiet and smart, will rotate at different speed according to the power load and temperature inside. So don't worry if the fan doesn't work while the power load is low.

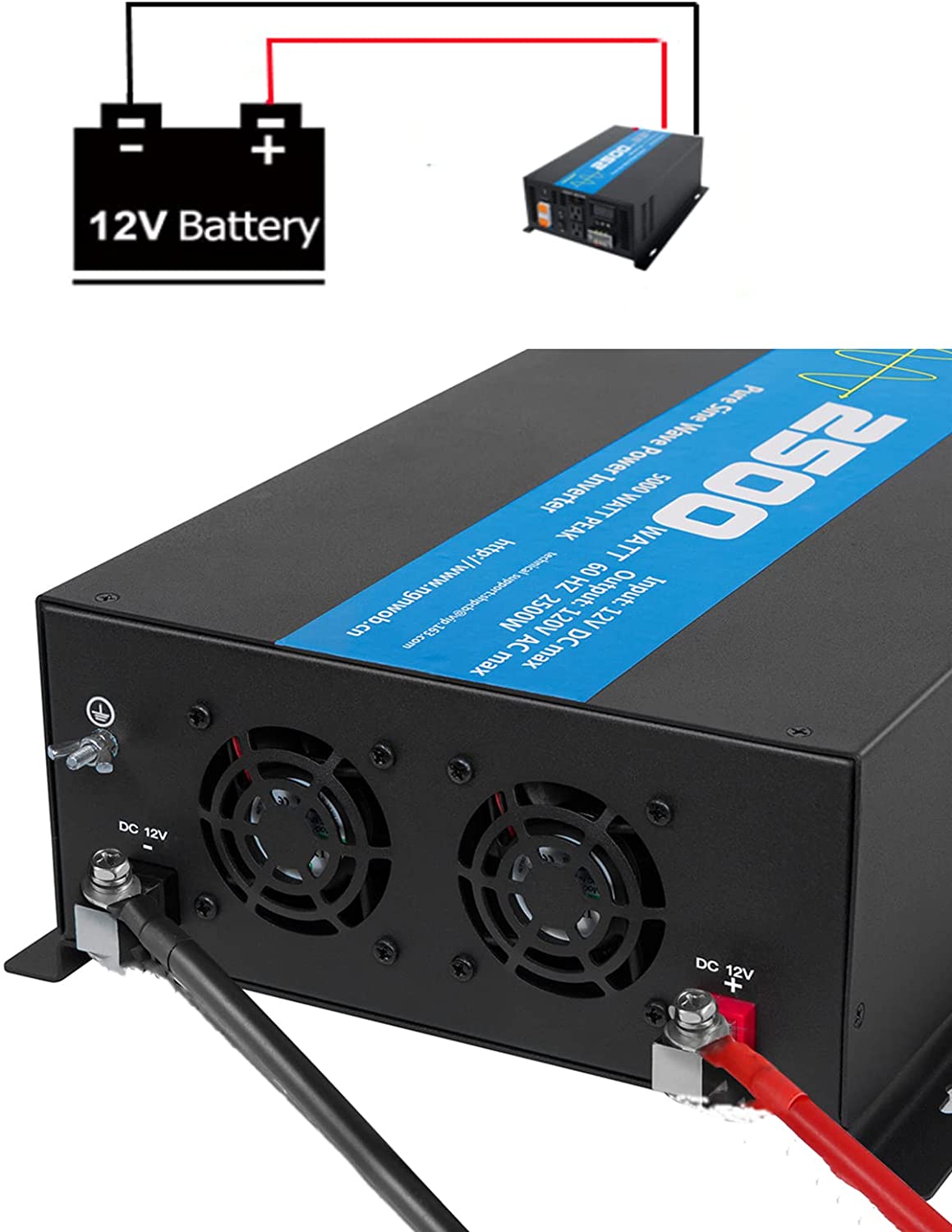

3. Be sure to connect the red cable to battery and inverter positive terminal, black cable to negative terminal of battery and inverter. Wrongly connect the battery cables will cause damage to inverter and devices.
4. Do not leave the power inverter at the ON position for long time while your car is off.
5.Do not power electric appliances exceed 2500 watts.For some inductive loads ,Like refrigerator ,washing machine ,microwave oven,drill pump, chain saw,air compressor .The starting power should be less than 2500 W, Rate power should within 400 W-800 W.
6.Do not let the inverter into sunlight and water directly, keep it in cool and dry environment.
|
|
|
|
|
|---|---|---|---|
|
Silent & Fast cooling fan 3 Powerful build-in intelligent cooling fan is fairly quiet and only cycles on when the temp is over 60 Celsius Degree. It makes inverter working silently most of the time and cool down in short time. |
superior internal core The Superior internal core is equipped with extra-Thick 2.0mm PCB Board, high quality pure copper inductance, big mosfets and high frequency transformer. which make inverter has high drive capacity, pure sine wave as well as off-grid power |
Durable case Aluminum alloy shell comes with great rigidity for protection against bumps and drops. |
Efficient & Energy-saving Due to the intelligent control program, its power conversation rate is as high as 88%. It’s more energy-saving than modified sine wave inverter. |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| 1200W | 1700W | 2500W | 3500W | 5500W | |
| Rate/peak power | 1200W/2400W | 1700W/3400W | 2500W/5000W | 3500W/7000W | 5500W/11000W |
| DC input: | 12.3~13.5 VDC | 12.3~13.5 VDC | 12.3~13.5 VDC | 12.3~13.5 VDC | 12.3~13.5 VDC |
| AC output: | 110-123VDC | 110-123VDC | 110-123VDC | 110-123VDC | 110-123VDC |
| USB output: | 5v, 2.0A | 5v, 2.0A | 5v, 2.0A | 5v, 2.0A | 5v, 2.0A |
| Built-in fuses | 3X30A | 6X30A | 30AX8 | 40AX8 | 35AX12 |
| Output wave form: | modified sine wave | modified sine wave | modified sine wave | modified sine wave | modified sine wave |
| Working Temperature: | 32°F (0°C) - 104°F (40°C) | 32°F (0°C) - 104°F (40°C) | 32°F (0°C) - 104°F (40°C) | 32°F (0°C) - 104°F (40°C) | 32°F (0°C) - 104°F (40°C) |
| Input Low Voltage Shutdown Protection: | DC 10士0.3V | DC 10士0.3V | DC 10士0.3V | DC 10士0.3V | DC 10士0.3V |
| Input Over Voltage Shutdown Protection: | DC 15士0.5V | DC 15士0.5V | DC 15士0.5V | DC 15士0.5V | DC 15士0.5V |
